HD Indoor Advertising P3mm Poster LED Display / Electronic Poster LED Screen 576*1920mm
Poster LED Advertising Player Features:
1. Ultra-thin and light-weight body——thickness is 40 mm and weighing less than 40 kg, making installation easy and fast .
2. Optional installation solutions——fold-out stand, Hanging, standby and wall-mounting can be realized to meet different demands.
3. HD visual experience——2.5 mm and 3 mm pixel pitch, high refresh rate (2000Hz) and brightness (1200 nits) provide users with perfect display effect.
4. High Brightness and stable and long lifetime.
5. Various work modes——besides single display work mode, multiple led display screen can be combined together creatively to bring a variety of display effect and improve the advertising efficiency.
6. Elegant appearance——aluminum- alloy frame, fully enclosed frosted rear cover, acrylic glass surface,it is a mirror led display and customized border color present enchanting and eye-catching appearance.
7. Multiple communication modes——communication via USB, WIFI, network cable and HDMI increase service efficiency.
8. Highly integrated hardware——integrated internal control system and power supply ensure the independent communication and management without other hardware, saving the CTU for customer.
Product specification
| indoor SMD P3 |
| Lamp size | SMD2121 |
| Resolution/mm | 3mm |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 111111/m² |
| Module resolution | 64x64 |
| Module size/mm | 192*192mm |
| View distance | ≥0.5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/32 |
| Frame rate | 60Hz |
| Refresh frequency | >1920Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

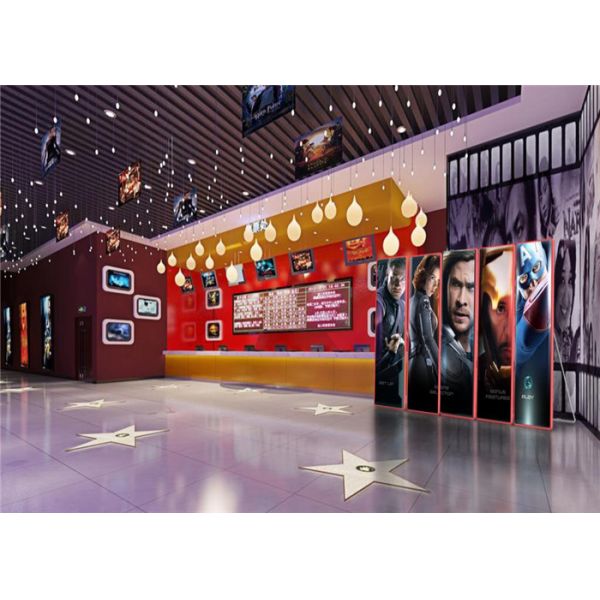

Poster LED Display For Indoor and Outdoor LED Advertising Player
Poster LED Player is a specially designed product targeting for indoor HD LED advertising player with highly integrated hardware and outdoor led display player with high brightness and easy installation, ultra-thin and light body, which can be your first choice to achieve perfect led advertising display effect.
LED Poster Display embodies features including various installation solutions, easy operation, multiple communication modes, high brightness, low power consumption and ultra-thin body to ensure stable and high-quality display effect even in bright-light venues. It is a new product that overturns traditional LCD ad player (high cost, low-quality picture,
uneven brightness, heavy body and high energy consumption), which can be widely installed in hotels, restaurants, shopping malls, banks, government agencies, hospitals and so on.
Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2. After sale service
Quick response
Prompt question resolving
Service tracing
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
