GOB P2 250000dots/sqm SMD1515 Shelf LED Display Screen 900nits anticollision
Product introduction

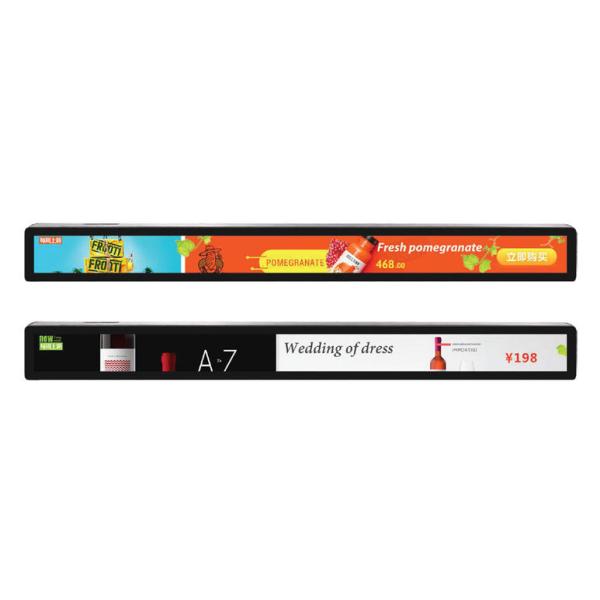

Shelf LED Display Screen including normal Shelf LED Display and shelf Header LED Display screen. Header shelf LED Display Screen install at the top of the shelf, wide display area can attract more customers' attention, it can bring more customers and profits. Multiple installation methods make installation more convenient.
Features:
• Ultra thin width, light weight, easy to install and move.
• Super simple installation, suitable for all stores.
• Plug in display, easy to operate.
• LAN Integrated publishing and remote publishing via the Internet.
•Various linkage modes, such as single screen application, cascade application, creative application, etc.
• USB / Wi Fi / HDMI / DVI / wired connection; fast management and release of mobile phone and PC.
• The calibration data is saved on the module and the factory settings are restored within 5 seconds.
Parameters:
| Pixeltype | 2mm |
| LED Encapsulation | GOB |
| PixelConfiguration | RGB |
| DrivingIC | ICN2065+ICN2018 |
| FreshFrequency | ≥3840Hz |
| ModuleResolution | 50*64 dots |
| ModuleSize | 100mm*128mm |
| InputVoltage(DC) | 4.2V |
| MaxVoltage | 1.5A |
| ModuleMaxPower | 6.5W |
| Drivingmethod | 1/45 |
| Horizontalviewingangle | ≥170(±10°) |
| Verticalviewingangle | ≥170(±10°) |
| Brightness | 400~600cd/㎡ |
| GrayLevel | >14bit |
| FreshFrequency | ≥1920Hz |
| PixelDensity(dot/㎡) | 250000dots/㎡ |
| MTBF | ≥100000Hours |
| LifeSpan | ≥50000Hours |
| Pixeluncontrolledrate | 0.3‰ |
| HUB | 1EA/ 1EA / 2EA |
| PowerSupply | DC5VTheExternalpowersupply |
| WorkCondition | INDOOR |
| Temperatureoperating | -40to60℃ |
| Humidityoperating | 10%to90%RH |
| StorageTemperature | 0to40℃ |
| StorageHumidity | 40%to60%RH |
P2 Shelf edge Display size is availble:
600*128mm
700*128mm
800*128mm
900*128mm
1000*128mm
1200*128mm
P2 Header display size:
600*256mm
700*256mm
800*256mm
900*256mm
1000*256mm
1200*256mm
How to Select Shelf LED Display
Location-indoor,outdoor or semi-outdoor
Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.
Size,Shape and Pitch
Size:Once you have measured the height, width and depth of the space and availability, then you want to make sure the selected LED size (and number of cabinets, height, width & depth) can be accommodated.
Shape:determines if curve or column or flat screens are required.
Pitch:determines the contents of the display and the range of viewing.
LED Facing Direction
Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud covers.
Selecting Your LED Supplier
For shop:
Attract and delight customers attention. Implement efficient operation for supermarket. Low down labor cost of changing paper labels.
For ads agency: Innovative Ads media, attracting more attentions.
Easy installation, no need for heavy steel construction and no need government released approvement.
Higher ROI (Return of investment)
Based on COB/LED technology: Providing more on-the-spot product information for customers.Offers a more engaging experience for our customers at the shelf.
Widely Application:
Supermarket, Club, Retails perimeter, retails shop, fashion shop and so on.
Vivid digital display with roll advertising. Attract and delight customer attention.Implement efficient operation for supermarket.
